LED street light


Product Parameters:

  • Wattage: 45W 75W 100W 150W 200W 250W
  • Luminous Efficacy:  175LM/W
  • Lumen Output:  7875lm-43750lm
  • Warranty: 7 years
  • Certification: UL,DLC Premium,SAA,VEET,CB
send inquiry

Hi-rise LED Street Light is the most cost-effective professional LED street light launched by Hishine Group. Hi-rise was designed to provide customers with tool-free installation, lower maintenance costs, and lower operating costs. Hi-rise LED Street Light features modern streamlined geometry, exquisite design, attention to detail, and outstanding application performance, energy efficiency and system reliability.

Hi-rise LED Street Light has obvious advantages in structural strength, corrosion resistance and heat dissipation due to its strong structure and smooth design. Secondly, Hi-rise LED Street Light has excellent light quality. 250 w Lumen Output can reach 43750 LM, Luminous Efficacy is as high as 175 w/LM, and there are TypeII, TypeIII, TypeIV, TypeV, 25 ° to 60 °, 90 ° a variety of optional light Angle,

Equipped with 0-10V dimming, timing controller, photocell, duty sensor, DALI control and other functions. And has a more powerful energy saving effect, can reduce energy consumption by up to 60%. , this product has passed UL, DLC, CE, CB, ROHS, SOSA, IK10 verification, quality is absolutely reliable, HISHINE promises to provide a 7-year warranty, for your lighting to provide a strong guarantee.

Advantages of Hi-Rise LED Street Lights

- Ultra slim heat sink design makes the lamp lighter and betier in heat dissipation
- High lumen SMD3030 chip, luminous efficacy 175Im/w
- Waterproof IP65,high thermal conductivity housing
- Beam angle TypeII,TypeIII,TypeIV,TypeV,25° 60° 90° PC lens
- Support smart control: photocell, motion sensor, lora, zigbee etc.

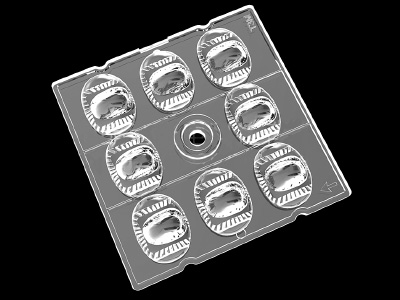

Beam angle:

Multiple lens Angle options,Type II, Type III,Type IV,Type V,25°/60°/90°

High light effect:

High lumen SMD3030 LED chip, high light efficiency, low loss.

Adjustable bracket:

Arm bracket with 90degree and 180 degree support, up and down 30degree adjusted

Dust cover:

Optional backplane design, dust-proof





Hi-Rise LED Street Light Parameters

Part Number HS-HB45W HS-HB75W/100W/150W HS-HB200W/250W
Input Power 45W 75W/100W/150W 200W/250W
Lumen Output 7875lm 13125lm/17500lm/26250lm 35000lm/43750lm
LED Chip Lumileds 3030 Lumileds 3030 Lumileds 3030
Luminous Efficacy   175LM/W
LED Quantity 64pcs 96pcs/144pcs/192pcs 288pcs/360pcs
CCT    3000K-6500K
Input Voltage   AC100-277V/347V/480V, 50/60Hz
PFC   >0.92
CRI   ≥80
Beam Angle 60°/90°/TYPE II, III, IV, V 25°/60°/90°/TYPE II, III, IV, V  25°/60°/90°/TYPE II, III, IV, V
IP RaTIng    IP65
Working Temperature   -30℃ to 55℃
Warranty   7 years
Lifespan   >50,000hrs
Material   Aluminum housing+PC lens+Glass cove
Certification   UL,DLC Premium,SAA,VEET,CB
Dimensions 599 L x 162 W x 108 H 599 L x 162 W x 108 H 742.5 L x 217 W x 108 H
N.G(KG) 3.6kg 3.6kg 5kg
G.W (KG) 4.2kg 4.2kg 5.8kg
Package Size 641 L x 204 W x 311 H 641 L x 204 W x 311 H 784.5 L x 259 W x 311 H
Pcs/carton   2pcs



Hi-Rise LED Street Light Dimensions



Hi-Rise LED Street Light Application

Widely use in high way, parking lot area, roadway, pathway, square,stadium,residential area,-
yard,industrial area and etc









AFTER-SALE SERIVCE

Hishine Group Limited(HISHINEGR) warrants this HISHINEGR-branded hardware products against defects in materials and workmanship under nomal use for a period of SEVEN(7) YEARS from the date of purchase.HISHINEGR provides free repair or replacement within the warranty period.HISHINEGR shall charge against defeats by abnormal storage,usage,connection,or change the structure or any components of the products.
