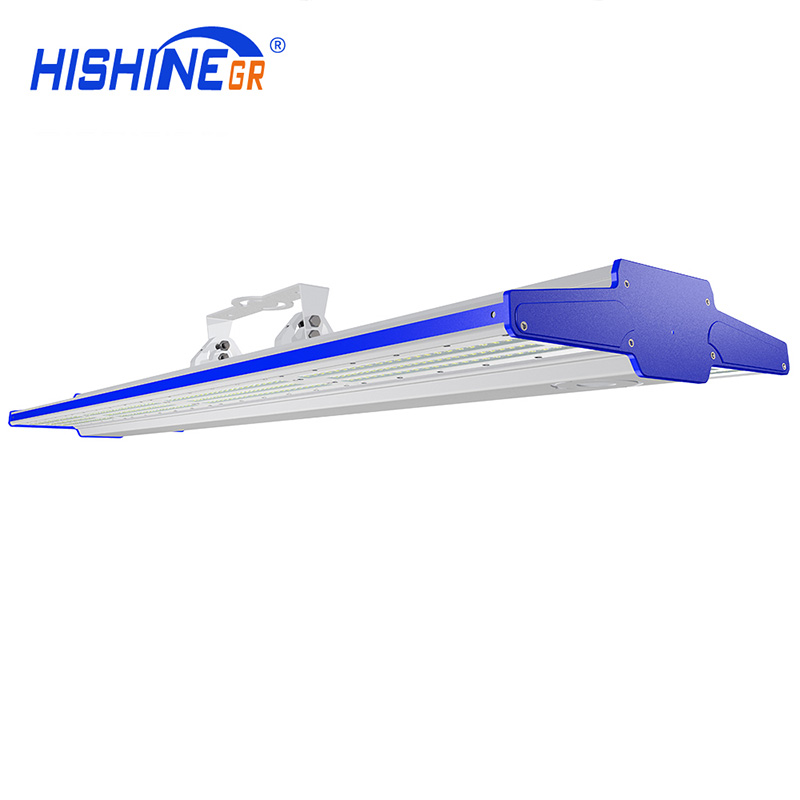

HS-HB-K2 linear LED luminairies deliver a high lumen output to replace legacy HID and 2-, 4- or 6-lamp T5HO fluorescent fixtures in both low bay and high bay applications. The HS-HB-K2 family of linear LED high bay fixtures are available in eight different wattages including 100W, 150W, 200W, 250W, 300W, 360W, 400W and 500W. They’re designed to replace 1300W HID equivalents while achieving up to 75% energy savings. Rugged construction and sophisticated LED technology add unparalleled energy efficiency and reliability for years of maintenance-free operation.
The HS-HB-K2 linear high bay delivers industry-leading performance with an extremely attractive payback advantage. The full body assembly features a value-optimized chassis design and is made of extruded aluminum that provides durable protection and optimal heat dissipation for LEDs, optics and electrical components. The high flux density SMD LEDs produce 152 lm/W system efficacy (lensed). Combined with perfectly matched driving circuit with full featured protections as well as superior thermal management, HS-HB-K2 LED modules offer an extraordinary lumen maintenance greater than 90 percent at 50,000 hours and projected life over 200,000 hours.
K2 LED Linear High Bay Light Product Specifications
K2 LED Linear High Bay Light Specification
K2 LED Linear High Bay Light Product Parameters
|
Part Number
|
HS-HB100W/150W-K2
|
HS-HB200W/250W-K2
|
HS-HB300W/360W-K2
|
HS-HB400W/500W-K2
|
|
Power
|
100W/150W
|
200W/250W
|
300W/360W
|
400W/500W
|
|
Luminous Efficacy
|
152LM/W
|
|
Lumen Output
|
15200lm/22800lm
|
30400lm/38000lm
|
45600lm/54720lm
|
60800lm/76000lm
|
|
LED Qty
|
154Pcs
|
308Pcs
|
462Pcs
|
616Pcs
|
|
Size(mm)
|
L300*W320*H80
|
L600*W320*H80
|
L895*W320*H80
|
L1190*W320*H80
|
|
CCT
|
3000K-6000K(Custom Option)
|
|
CRI
|
>80Ra
|
|
System Efficiency
|
>90%
|
|
Lens
|
60°/90°/120°
|
|
Input Voltage
|
AC100-277V/347V/480V, 50-60Hz, >0.92
|
|
Warranty
|
7 years
|
|
IP Rating
|
IP65
|
|
Lifespan
|
50,000+ Hours
|
|
Material
|
Die-casting Aluminum housing+PC lens
|
|
Working Temperature
|
-30℃ to +50℃
|
|
Certification
|
UL,DLC,SAA,VEET,CB,IK10,IP65
|
|
Color of Housing
|
Blue+white(customized)
|
Key Features Of K2 LED Linear High Bay Light
1. Separate heat sink for driver and Led chip
2. Three-dimensional diamond light guide technology
3. Beam angle 60°; /90°; /120°; with transparent / frosted PC lens available
4. Endless Connection
5. Colorful housing can be customized
K2 LED Linear High Bay Light Intelligent Control
K2 LED Linear High Bay Light Intelligent Control： 0-10V Dimming,Timer Control, Zigbee Control, Occupancy sensor,Daylight sensor,Emergency power supply,DALI Control
K2 LED Linear High Bay Light Lens And Beam Angle
Milky Lens And Transparent Lens
View angle 60°;/90°;/120°; available
Milky Lens Light did not glare but warm,always in pression
Transparent Lens Transparent Lens transmittance over 92%
K2 LED Linear High Bay Light IP Rating IP65
Silicon rubber ring sealing process, IP grade reach IP65,
completely prevent dust invasion and heavy rain.

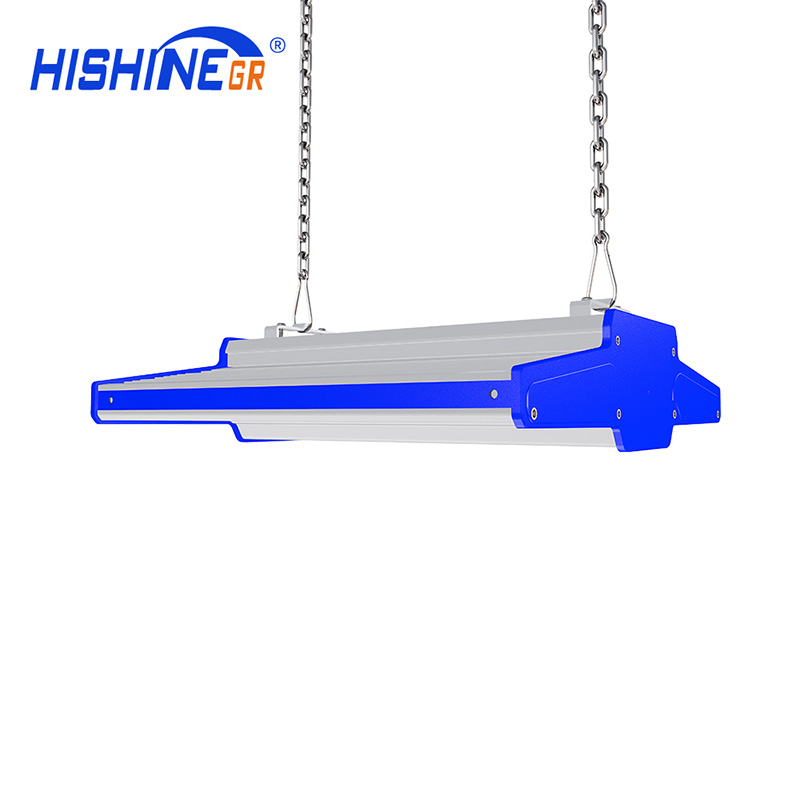

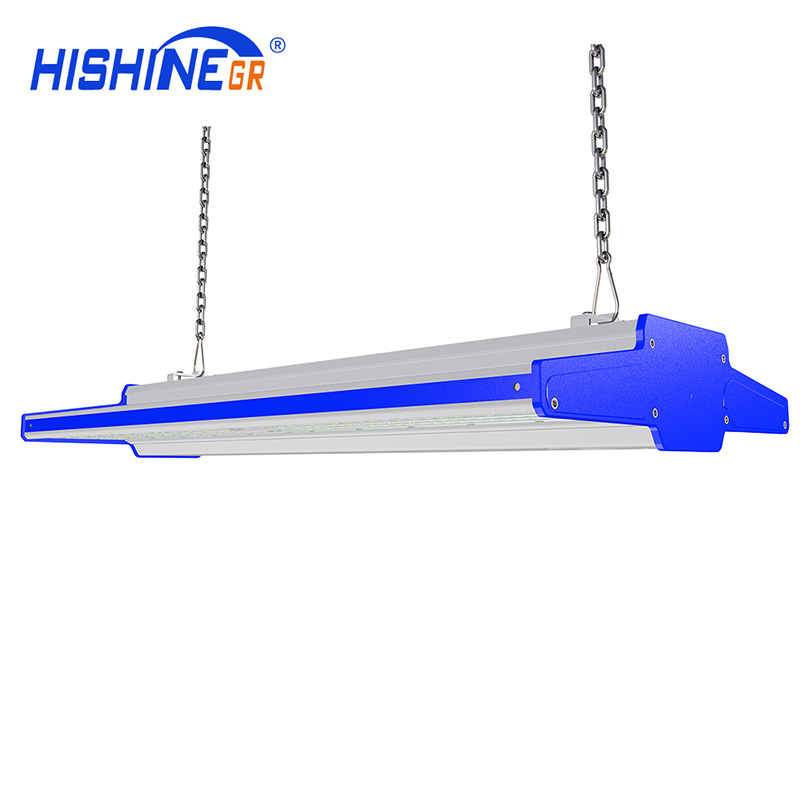

K2 LED Linear High Bay Light Multiple Mounting Options
K2 LED Linear High Bay Light Applications
Widely used in Factory, Workshop, Warehouse, Logistics Center Exhibition Hall,Gymna-sium, Shipyards, Mining, Gas Station, Supermarket, etc.
