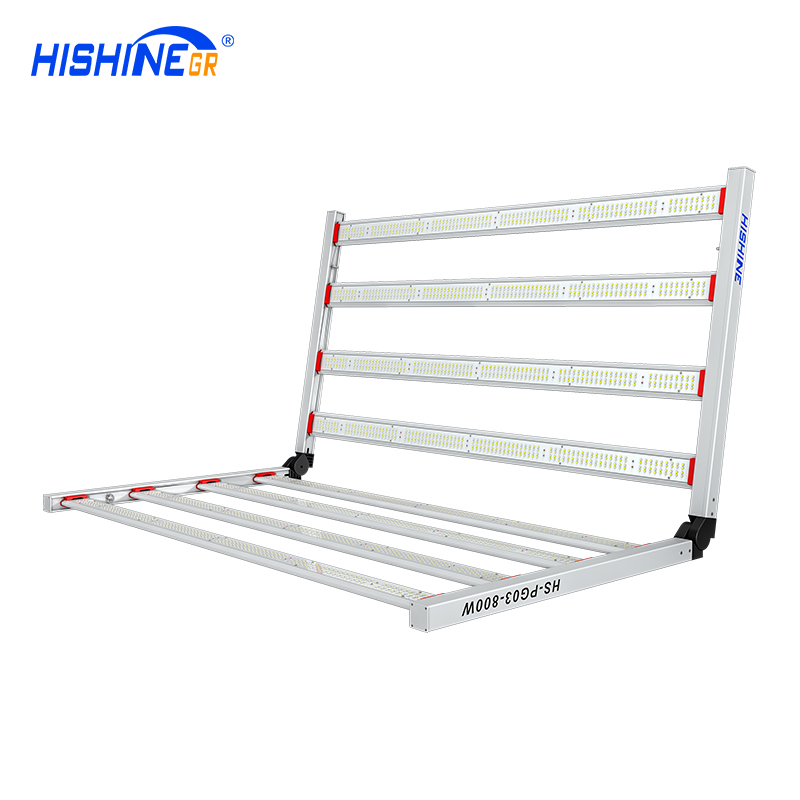

PG03 800W LED Grow Light
  • PG03 800W LED Grow Light
  • PG03 800W LED Grow Light
  • PG03 800W LED Grow Light
  • PG03 800W LED Grow Light
  • PG03 800W LED Grow Light
  • PG03 800W LED Grow Light
  • PG03 800W LED Grow Light
  • PG03 800W LED Grow Light
  • PG03 800W LED Grow Light
  • PG03 800W LED Grow Light
  • PG03 800W LED Grow Light

PG03 800W LED Grow Light


Product Parameters:

  • Wattage: 800W
  • PPF: 2240 µmol/s
  • Efficacy: 2.8 µmol/J
  • Dimmable: OFF-25%-50%-75%-100% with 0-10V Light Dimmer
  • External Control: With Lumatek Digital Panel
  • Warranty: 5-Years
send inquiry

This ultra-high output grow light uses NEW SMD LEDs to produce full-spectrum white light, which is very suitable for the growth of flowering plants. Its light output of 2240 µmol/s meets or exceeds the traditional 1500W DE HPS plant growth lamp. Its compact size can be used in vertical growth configurations. PG03 is passively cooled through its trapezoidal design. It has a built-in dimming control knob and has a remote dimming function. 5-year warranty.



PG03 800W LED Grow Light



PG03 800W LED Grow Light Specifications



PG03 800W LED Grow Light Specifications



PG03 800W LED Grow Light Technical Specification Sheet



Part Number

HS-PG03-800W

Input Power

800W

Input Voltage

90-277VAC/347-480V, 50/60 Hz

PPF

2240(µmol/s)

PPE

2.8(µmol/J)

Colour Rendering Index

80ra



Chip

3030/3000K/--2240pcs
3030/5000K/--480pcs
3030/660nm/--80pcs

Mounting Height

≥ 6” (15.2cm) Above Canopy

Ambient Temperature

-20°C~40°C

Dimming

0-10V/PWM/Timer Dimming

Light Distribution

120°

Lifetime

>50,000 hours

Power Factor

>0.95

Warranty

5 Years

IP Rating

IP65

MAX AMPERAGE BY VOLTAGE SERVICE

VOLTAGE



120V

230V

277V

347V

480V

AMPERAGE

HS-PG03-800W

6.8A

3.7A

3A

2.4A

1.7A

Dimensions

43.7” L x 43.7” W x 4.7” H

1110mm L x 1110mm W x 120mm H

N.G(KG)

23kg

G.W (KG)

25kg

Package Size

45.9” L x 24” W x 6” H

1165mm L x 615mm W x 150mm H

Pcs/carton

1pcs



NEW SMD LEDs Increase your yield



We have integrated the industry-leading New SMD LEDS diodes in our PG03 series grow lights. From seedling to flower, this light will perform and can increase your yield by up to 50% compared to standard blurple style lighting.



PG03 800W LED Grow Light NEW SMD LEDs Increase your yield



Creates a healthy harvest and allows for photorespiration.



In all grow stages:

Full-spectrum - mimics natural sunlight (emits from 400nm to 700nm).



During active photosynthesis:

Blue light increases chlorophyll resulting in strong, healthy stems and leaves;

Red light is essential for seed germinations and root growth. Later it promotes flowering and the production of fruit.



PG03 800W LED Grow Light full spectrum



Support a variety of intelligent controls



HISHINE PG03 LED lamps can be fully controlled by HISHINE digital panel or any other control system using 0-10V output signal. Even if your universal controller has an RJ port interface, you can still operate our LED by using a signal converter RJ to 0-10V control adapter.



PG03 800W LED Grow Light Support a variety of intelligent controls



Dual signal digital lighting controller that offers precise external control of your HISHINE lighting fixtures and drivers.



PG03 800W LED Grow Light Support a variety of intelligent controls



PG03 800W LED Grow Light Support a variety of intelligent controls



PG03 800W LED Grow Light AND EASY TO INSTALL



Designed To Meet More Needs



More applications



● Breeding, flower growth

● Farming Cultivation

● Promote Cannabis growth

● Vegetable, fruits etc

● Green house/ Horticulture/ Hydroponics/ Grow Tent

● The height of the leaves is about 0.5-1 meters, continuous exposure for 12-16 hours a day can    completely replace sunlight.



Hishine Group Limited is a leading provider of IoT network solutions, specializing in street lights, sports lights, and seaport lights. As a member of the Wi-SUN Alliance, Hishine Group Limited is committed to delivering innovative and reliable IoT applications for smart cities. With their expertise in street light technology, Hishine Group Limited offers comprehensive solutions that integrate seamlessly with existing infrastructure, enabling cities to optimize energy consumption and enhance public safety. Their IoT network solution allows for remote monitoring and control of street lights, ensuring efficient operation and timely maintenance. Moreover, Hishine Group Limited's sports lights and seaport lights are designed to meet the specific requirements of these environments, providing high-quality illumination and ensuring the safety of athletes and seafarers. With a strong focus on sustainability and technological advancements, Hishine Group Limited continues to revolutionize the lighting industry and contribute to the development of smart cities worldwide.

PG03 800W LED Grow Light application

PG03 800W LED Grow Light application

PG03 800W LED Grow Light application
