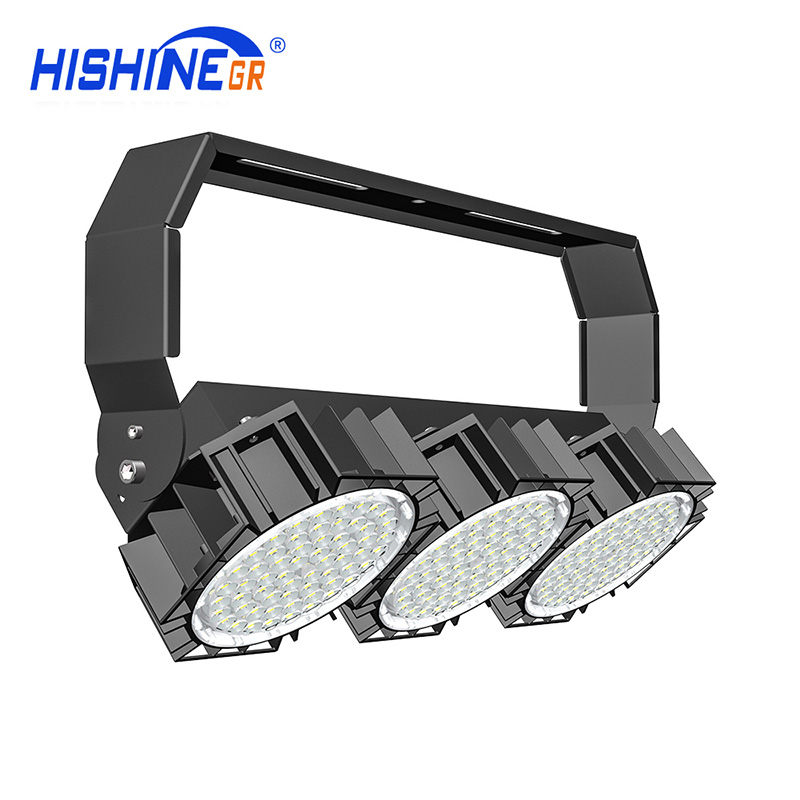

LED High Mast Lighting
  • LED High Mast Lighting
  • LED High Mast Lighting
  • LED High Mast Lighting
  • LED High Mast Lighting
  • LED High Mast Lighting

LED High Mast Lighting

Product Parameters:

  • Wattage: 120w-1300W
  • Luminous Efficacy: 160LM/W
  • Lumen Output: 19200lm-208000lm
  • Warranty: 7-10 years (optional)
  • Certification: UL, DLC, CB, CE, SAA, SASO, IP67
send inquiry

Table of Contents




Best High Mast Lighting Systems | 160lm/w LED Sports Lighting | HISHIEN LIGHTIGN



HI-ROBOT LED High Mast Light high output technology can provide excellent lighting. Through advanced technology, it brings industry-leading 70/80/90 CRI color quality and performance range to outdoor lighting applications. High mast lights are also the most heavy-duty lighting systems that must possess the strength and resistance required to survive the most challenging outdoor environments. High mast lights are usually installed on poles from 40 feet to 150 feet high, and each pole is installed with 4 to 16 fixtures. Large municipal sites, ports, municipal authorities, and sports venues and sports facilities such as car park often use this type of outdoor lighting.

Best High Mast Lighting



Reference standards for high mast lights

When choosing a high mast light, you need to consider the range of lighting to meet the standards of illuminance, color temperature, color rendering, three-dimensional perception, texture, glare limit, etc., and also need to remove the redundant shadows generated during the lighting process, and adjust the light And the disadvantages of ultraviolet rays (Light pollution).




The high mast lighting system should have the best high mast lighting design calculation. According to the Guide of High Mast Lighting, the mounting height of the luminaries is usually at least 30m. Generally speaking, it needs about 300 to 500 lux for the entertainment sports field, and 50 to 200 lux for the airport, seaport, and outdoor industrial areas.



2.Uniform illumination

The more uniform the light distribution, the better the illuminance and the more comfortable the visual experience. The closer the illuminance uniformity is to 1, the better; on the contrary, the smaller it is, the more visual fatigue will increase. General square lighting has no clear requirements for the uniformity of high mast light, but stadium lighting has higher requirements for the uniformity of high mast light.



3.Color rendering index (CRI)

In recent years, high mast light has almost become the standard for stadium lighting, so is the color rendering index important for stadium lighting? The answer is beyond doubt! Because color rendering is an important aspect of evaluating the quality of lighting, the color rendering index is an important method to evaluate the color rendering of light sources, and an important parameter to measure the color characteristics of artificial light sources. The higher the color rendering index, the better the color rendering of the light source. , The stronger the ability to restore the color of the object. In addition, stadiums with different functions have different requirements for color rendering index. Generally speaking, the more large and professional sports events, the higher the requirements for color rendering index.


4.Light pollution

With the rapid development of the city, various types of lights are dotted around every corner of the city. Although every corner of the city is lit up as bright as the day, it also brings light pollution to people, such as the surrounding stadiums. Brightness, so as to affect the normal life of surrounding residents. In addition, the glare and ultraviolet rays generated by LED lighting are also part of light pollution, which unknowingly endangers people’s health.



High mast lighting project case

HISHINE Lighting provides a high-lumen high-mast lighting solution because it can achieve high-altitude lighting.

High mast lighting project case



Project details

Model: HS-HM-960W HI-ROBOT high mast light

Power: 960W

Replace the traditional MH lamp: 2000W

Application:High mast lights are used to illuminate large areas such as stadiums, football fields, rugby fields, etc.


Application reference: football field high pole lighting

1 pole: 48m

Light: 960W LED high pole flood light

Quantity: 40PCS

Average LUX of the lamp: 650LUX.


High mast lighting project case

LED high pole lights are an ideal solution for the lighting of stadiums, football fields, tennis courts and outdoor stadiums. It is suitable for square lighting, service area lighting, airport, seaport and outdoor industrial area large area lighting, etc.


High mast light specifications

Part Number














Lumen Output








LED Quantity














LED Chip

Lumileds 5050

Luminous Efficacy






Beam Angle


IP Rating


Working Temperature

-30℃ to +55℃

Input Voltage

AC100-277V/347V/480V, 50/60Hz, >0.92


7 years




Die-casting Aluminum housing+PC lens




Why Choose Hishine LED High Mast Lights

1, Independent R & D department. We only make our own designed and private molding led lights.

2, We have more than 100 high-tech research and development of patented products.

3, Die-casting division, Sheet metal division, Dusting division,Painting division, and SMT division.

4. Full certificates. CE, ROHS, LM-79 and LM-80, SAA, VEET, FCC, UL, and DLC.

5, Have the full test machines for LED lamps, such as IES, salt spraying, water-proof and vibrating tests

Why choose Hishine's LED high mast lights



1.1.High light efficiency

LED high-pole lights have been in development for some years. In the past, many people did not choose LED high mast light because of poor brightness. Although the brightness of LED high mast light is getting higher and higher, its power is generally very large, so people also require it to save energy. The energy-saving LED high mast light mainly depends on its luminous efficiency. The higher its luminous efficiency, the more it saves energy. Nowadays, the luminous efficiency of most high mast lights on the market is generally about 120lm/w, while the luminous efficiency of our high mast lights reaches 160lm/w.Such high luminous efficiency can save customers a lot of electricity costs every year.



2.Flexible splicing of multiple modules

The high mast lights we produce adopt modular design and each unit of different modules can be spliced freely and flexibly according to different venues and different lighting needs.In addition, due to the modular design, if one of the lights in the module is broken, the other lights will not be affected, and only the damaged lights need to be replaced during maintenance and replacement. It's very convenient on maintenance.

Flexible splicing of multiple modules





High Mast Lighting Anti-glare

When there is a strong brightness contrast or extremely bright bright spots in the field of view, people’s pupils will shrink, forming light spots in the eyes, destroying people’s visual system’s adaptation to the surrounding physical space, causing visual decline or discomfort sense. The glare is firstly due to the high brightness of the light source surface. The higher the brightness of the light source, the more serious the glare.Our high mast lights are designed with lampshades, which can effectively solve the glare problem.


4.High CRI



High Mast Lighting High CRI

The color rendering index has been introduced before. The larger the color rendering index, the stronger the ability to restore colors, so the visual effect in TV broadcast is better.The color rendering index of our high mast lights is very high, the color rendering index is greater than 90Ra, such an excellent color rendering effect can fully meet the lighting requirements of professional large-scale sports events.



5.TV broadcast

If the stadium lighting uses high pole lights and is used for professional events, then you need to consider whether it can meet the requirements of high-definition TV broadcasting, and the main factor that affects high-definition TV broadcasting is stroboscopic, which will also affect the players Your eyesight affects normal performance. Our high mast lights truly achieve no flicker and low glare value, which can truly meet the requirements of large-scale professional event lighting and high-definition TV broadcasting.



6.Heat dissipation


High Mast Lighting Heat dissipation

Although the LED light is called the cold light source, the various components in the lamp body will generate heat due to resistance and other factors after being energized. As we all know, the higher the power of the lamp, the more heat is generated, the more serious the heat, and the main factor affecting the life of the LED light is the heat problem, because the light decay of the LED light will increase due to the increase in temperature. In order to effectively solve the heat dissipation problem, our high mast light first selects high-quality heat-dissipating aluminum material in the material and evenly spreads thermal grease on the surface. In addition  it  adopts hollow-out heat dissipation fin design in appearance design



7.Effectively solve light pollution


High Mast Lighting Effectively solve light pollution

With the development of LED technology, the brightness of various LED lights has been greatly improved, but it is because the major LED manufacturers blindly pursue the brightness, but ignore that it may be bad to the normal life of the surrounding resident's influences. In addition, LED lights on the market generally have glare and stroboscopic problems. The more severe fact is that these low-quality LED lights flood the market. In addition, the ultraviolet ray produced by LED lights is also a problem that people easily ignore, but it unknowingly affects people's health seriously. We take these factors into consideration at the beginning of the design and production of our high mast lights and regard them as one of our main objectives and selling points.


8.Resistance level


High Mast Lighting Resistance level

1.Waterproof level

The high mast lights you can see are all standing outdoors, so excellent waterproof performance is essential. According to the theory, the waterproof level of outdoor lamps only needs to reach IP65. However, we have a very high requirement for the quality, because the power of outdoor high mast light is generally very high, so the price is not cheap. In order to avoid customers' loss due to water intake of lamps, the waterproof level of our high mast lights reaches IP67.



High mast lights are baptized by nature throughout the year, and are exposed to wind, rain, and sun, so this requires the lamp shell to have good corrosion resistance. Our high mast light is made of high-quality aluminum alloy, which has a huge advantage over iron materials in terms of corrosion resistance.




Since the pole length of the high mast light is generally more than 15 meters, according to scientific knowledge, the higher the height, the higher the wind speed.Then you can imagine, if you encounter squally rainy weather, what is the wind speed at a height above 15 meters? If the wind resistance of the high mast light is not good, the blown off high mast light will cause danger to the surrounding residents. In this regard, our high mast lights have been tested for wind resistance, and the test results show that our high mast lights can withstand the intrusion of winds of level 17.



9.Long lifespan and low maintenance cost

Calculated according to the average service life of various lamps, the service life of LED lights is about 10 times that of traditional metal halide lamps, while the service life of LED high mast lights on the market is generally more than 50,000 hours. The average service life of our LED high mast lights is close to 100,000 hours, and such a long service life can greatly reduce maintenance frequency and maintenance costs. In addition, because the installation method of our high mast lights is simple and flexible, the maintenance is also very convenient.



10.Free Dialux simulation


High Mast Lighting Free Dialux simulation

For those high mast lights used for stadium lighting, we can provide customers with free Dialux simulation services and provide reference opinions for customers' lighting arrangements. Our team of engineers will be very glad to help you.



11.Multiple installation methods and uses


Best High Mast Lighting Multiple installation methods

Due to the variety of installation methods, our high-pole lights can meet different installation conditions. Therefore, our high mast lights have a wide range of uses, not only for stadium lighting, airport lighting and construction site lighting,It is even installed on the boom of a gantry crane in the port after being purchased by customers.



Why Hi-ROBOT high mast lights can replace traditional HID lights?

In addition to 11 major advantages of the above may explain why our high mast lights can be used to replace traditional HID lighting, there is another big reason is to save money. The energy consumption of our high mast lights is only 54.6% of the traditional HID lights, so we can save at least 40% of the electricity cost compared with the traditional HID lights. If there are a lot of lamps, the electricity cost saved in one year is very considerable.



When choosing a high mast light, you must first consider the purpose of the high mast light, because different uses have different performance requirements for the high mast light. Secondly , we need to consider his price, quality and after-sales service, which can guarantee you Can find a high-quality supplier. If you want to know more about Hishine, please don't hesitate to get in touch with us!
