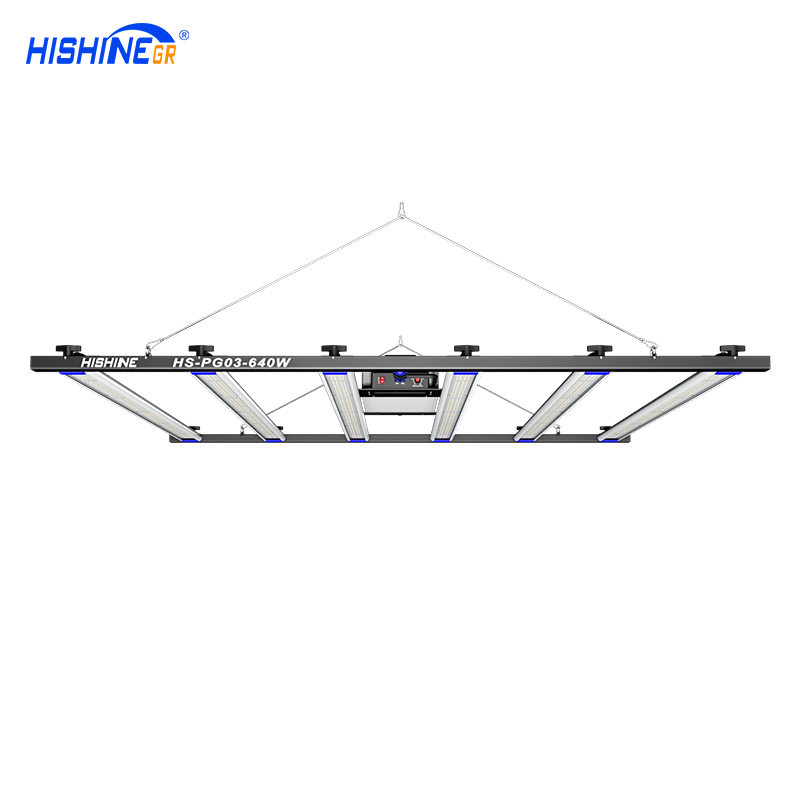

DIY LED Grow Light


Product Parameters:

  • Product Name: DIY LED Grow Light
  • Wattage: 200/600/640/800W
  • PPF: 520/1620/1728/2240 µmol/s
  • Efficacy: 2.6/2.7/ 2.8 µmol/J
  • External Control: With Lumatek Digital Panel
  • Warranty: 5-Years
See Price

This is a led grow light that can be designed by users for their own diy. It has different powers such as 200w, 600w, 640w, and 800w for you to choose. The PPFD and PPF are also different according to the selected power. Freely design your own planting area and type to customize the most suitable led grow light for you. Each product you choose supports full-spectrum, high-efficiency PPFD and enhanced red light spectrum parameters, which can maximize you The planting yield and the shortest planting time, if you want to diy led grow light, this is your ideal choice.



DIY LED Grow Light



DIY LED Grow Light Specifications



DIY LED Grow Light Specifications



LED Grow Light Technical Specification Sheet

Part Number PG03-LED Grow Light
Input Power 200W/600W/640W/800W
Input Voltage 90-277VAC/347-480V, 50/60 Hz
PPF 520/1620/1728/2240(µmol/s)
PPE 2.6/2.7/2.8(µmol/J)
Colour Rendering Index 80ra
Chip 2835/4000K/--600/1800/2400pcs
3030/660nm/--20/60/80pcs
Mounting Height ≥ 6” (15.2cm) Above Canopy
Ambient Temperature -20°C~40°C
Dimming 0-10V/PWM/Timer Dimming
Light Distribution 120°
Lifetime >50,000 hours
Power Factor >0.95
Warranty 5 Years
IP Rating IP65
MAX AMPERAGE BY VOLTAGE SERVICE
VOLTAGE   120V 230V 277V 347V 480V
AMPERAGE 200W 1.5A 0.83A 0.69A 0.55A 0.4A
600W/640W 4.75A 2.48A 2.06A 1.64A 1.19A
800W 6.3A 3.3A 2.75A 2.2A 1.59A
200W Dimensions 23.6” L x 19.6” W x 2.65” H
600mm L x 500mm W x 67.5mm H
600W/640W Dimensions 41.69” L x 41.49” W x 2.65” H
1059mm L x 1054mm W x 67.5mm H
800W Dimensions 41.69” L x 41.49” W x 2.65” H
1059mm L x 1054mm W x 67.5mm H
N.G(KG) 4/12/14kg
G.W (KG) 5/15/17kg
200W
Package Size
25.6” L x 10.23” W x 4.3” H
650mm L x 260mm W x 110mm H
600W/640W Package Size 42.91” L x 10.23” W x 5.51” H
1090mm L x 260mm W x 140mm H
800W
Package Size
42.91” L x 10.23” W x 5.51” H
1090mm L x 260mm W x 140mm H
Pcs/carton 1pcs



200W LED Grow Light - 2.8µmol/J PPFD LED Grow Light - Hydroponic cultivation LED - Full Spectrum Wavelength + Boosted Red - Commercial planting

Better design: The wonderful design brings more efficient plant cultivation, which is more efficient and consumes less energy than HPS and HID lights of the same wattage, while reducing packaging space by 70%.

Better lighting: Brings an ultra-wide spectrum from 400nm to 700nm, which can bring at least 2.6µmol/J of PPFD and 520µmol/s of PPF.

Less heat: Heat has always been the biggest headache for indoor growers. They worry that the grow light will bring super high heat, which will "baked" the plants. However, the heat generated by the LED is very small and can be installed Where plants are very close, maximize the use of your light.

Easier to use: The installation is very simple, even for novices, it takes less than 1 minute to install and use.

Easier management: Batch management can be carried out through the mobile phone management system, remote one-key dimming, and easy dimming from 0-10V according to your needs.



Tool Free Quick Installation

DIY LED Grow Light tool free quick installation



Detachable Power Supply

DIY LED Grow Light detachable power supply



Support A Variety Of Intelligent Controls

DIY LED Grow Light Support A Variety Of Intelligent Controls



About HISHINE Group Limited

We are an enterprise focusing on R&D and manufacturing of LED products for 16 years. Continuous innovation is to provide better LED products to the world.



DIY LED Grow Light Applications

It is widely used in indoor planting, commercial planting, greenhouse, cloning room, tissue culture, seed propagation, indoor vegetable, gardening, hydroponic planting, etc.

DIY LED Grow Light Applications
