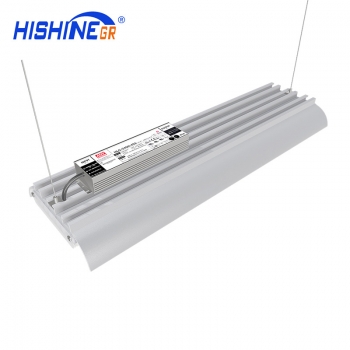

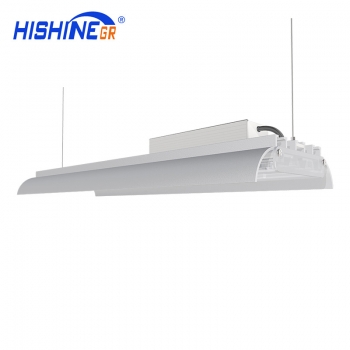

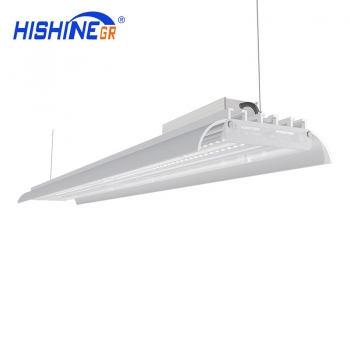

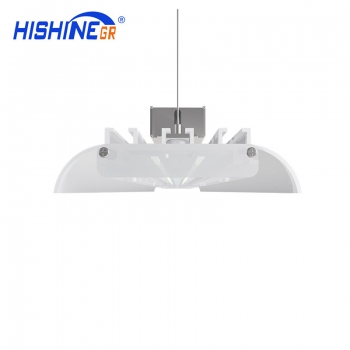

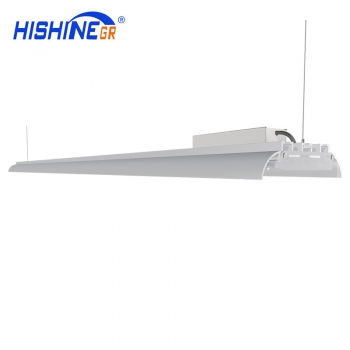

K3 LED Linear High Bay Light


Product Parameters:

  • Wattage: 30W 60W 90W 120W
  • Luminous Efficacy: 152LM/W
  • Lumen Output: 4560lm-18240lm
  • Warranty: 5 years
  • :
See Price

k3 Linear High Bay Light

K3 Linear High Bay Light has a special structure and good heat dissipation. It is more suitable for certain places such as warehouses, shops. LED linear overhead energy saving, so you don't need to worry about electricity bill. Generally, linear ceiling lights have a long and narrow rectangular distribution, and therefore only cover areas where light is needed to reduce wasted lighting.

K3 LED Linear High Bay Light No strobe

K3 LED Linear High Bay is designed for aisle in warehouse, generating rectangular lighting pattern perfectly complied with shape of aisles.

K3 LED Linear High Bay

K3 LED Linear High Bay Light Product Specifications

K3 LED Linear High Bay Light Product  Specifications

K3 LED Linear High Bay Light Product Parameters

Part Number

HS-HB30W-K3

HS-HB60W-K3

HS-HB90W-K3

HS-HB120W-K3

Wattage

30W

60W

90W

120W

Lumen Output

4560lm

9120lm

13680lm

18240lm

LED Quantity

49pcs

98pcs

147pcs

196pcs

Size(MM)

L298*W100*H26.5

L590*W100*H26.5

L885*W100*H26.5

L1180*W100*H26.5

LED Chip

Lumileds /Cree

Luminous Efficacy

152LM/W

CCT

3000K-6500K

CRI

≥80

Beam Angle

30°/60°/90°,Asymmetric 25°/30°

IP Rating

IP44

Working Temperature

-30℃ to +55℃

Input Voltage

AC100-277V/347V/480V, 50/60Hz, >0.92

Warranty

7 years

Lifespan

>50,000hrs

Material

Die-casting Aluminum housing+PC lens

K3 Linear High Bay Light Light source Two side cover avoid light leaking

K3 Linear High Bay Light Light source  Two side cover avoid light leaking

K3 Linear High Bay Light Light Distribution Optional

Various beam angle 30°/60°/90° options, and asymmetric 25°/30°

Various beam angle 30°/60°/90° options, and asymmetric 25°/30°

K3 Linear High Bay Light Multiple Mounting Options

k3 Linear High Bay Light Multiple Mounting Options

K3 Linear High Bay Light Applications

Widely use in workshop,factory, warehouse,stadium,exhibition hall,supermarket,court,etc.

k3 Linear High Bay Light Applications 1

k3 Linear High Bay Light Applications2
