FIFA LED stadium light smart system supplier in Bolivia

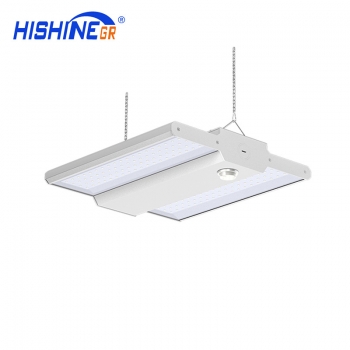

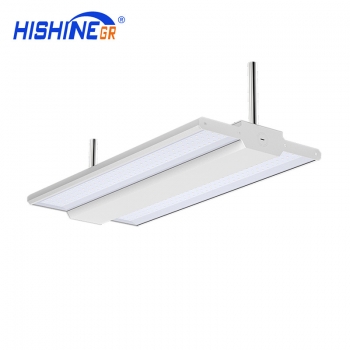

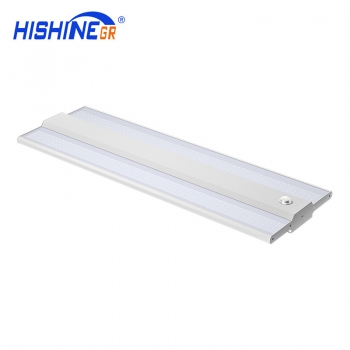

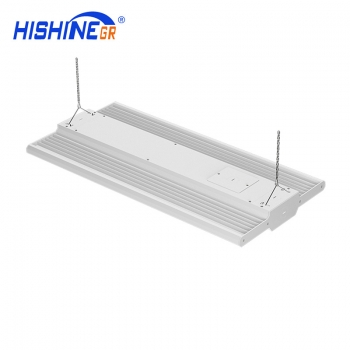

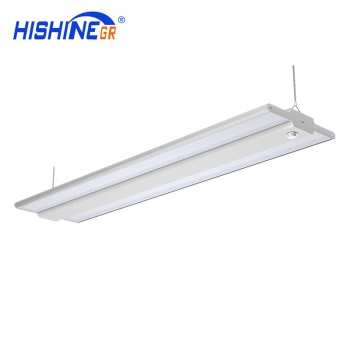

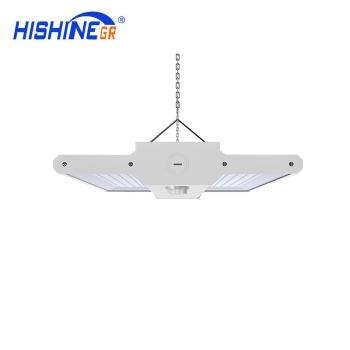

The K6 LED linear High Bay is an ideal one-to-one replacement for conventional HID and fluorescent lighting systems in large indoor spaces, including manufacturing, warehousing, commercial, and gymnasium applications with mounting heights ranging from 10 ft. to 45 ft. The K6 LED linear High Bay series is designed to replace 250W to 400W metal halide fixtures while consuming up to 57% less energy and operating for 50,000 hours. The expected service life is more than 9 years at 12 hours/day operation.
|
Part Number |
HS-SB75W-K6 |
HS-SB150W-K6 |
HS-SB240W-K6 |
HS-SB300W-K6 |
|
Wattage |
75W |
150W |
240W |
300W |
|
Lumen Output |
10500lm |
21000lm |
33600lm |
42000lm |
|
LED Quantity |
150pcs |
300pcs |
480pcs |
600pcs |
|
Size(MM) |
L320*W299*H62 |
L620*W299*H62 |
L910*W299*H62 |
L1205*W299*H62 |
|
LED Chip |
Lumileds /Cree |
|||
|
Luminous Efficacy |
152LM/W |
|||
|
CCT |
3000K-6500K |
|||
|
CRI |
≥80 |
|||
|
Beam Angle |
120° |
|||
|
IP Rating |
IP22 |
|||
|
Working Temperature |
-30℃ to +55℃ |
|||
|
Input Voltage |
AC100-277V/347V/480V, 50/60Hz, ＞0.92 |
|||
|
Warranty |
5 years |
|||
|
Lifespan |
＞50,000hrs |
|||
|
Material |
Die-casting Aluminum housing+PC(frosted), PE(milky) |
|||
1. High luminous efficacy up to 140lm/w
2. Separate heat sink for driver and led chip
3. Various type of lens for choosing,PC(frosted), PE(milky),
4. Colorful housing can be customized
K6 LED Linear High Bya Lighting includes 0-10V Dimming,Timer Control, Zigbee Control , Occupancy sensor,DALI Control,Emergency power supply
Various type of lens for choosing,PC(frosted), PE(milky),
Widely use in workshop,factory, warehouse,stadium,exhibition hall,supermarket,court,etc.
