K4 LED Linear High Bay Light


Product Parameters:

  • Wattage: 50W 100W 150W 200W 250W
  • Luminous Efficacy: 152LM/W
  • Lumen Output: 7600lm-38000lm
  • Warranty: 7 years
  • :
See Price

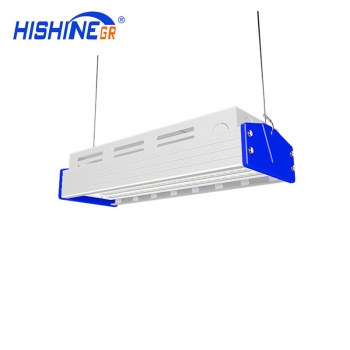

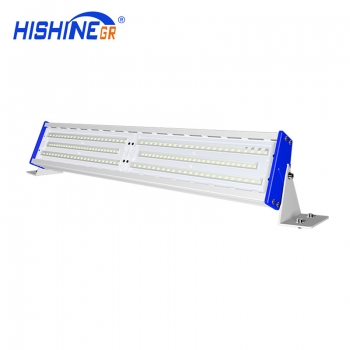

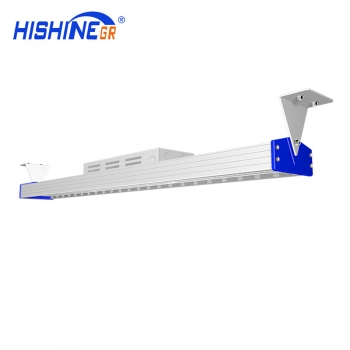

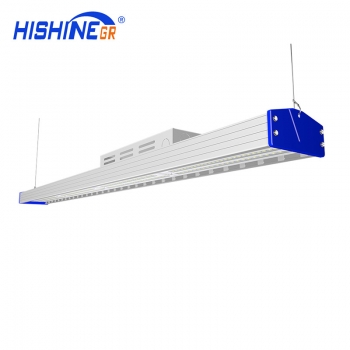

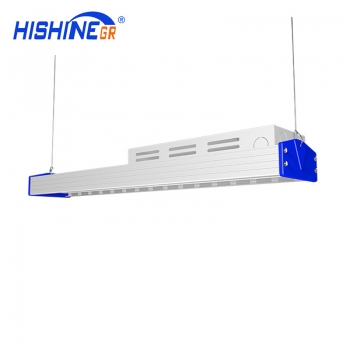

K4 LED Linear High Bya Light

Release of HISHINE The Compact Tough Linear High Bay is built to last in the most rigourous industrial workplace. K4 High luminous efficacy up to 152lm/w,making it ideal for warehouses, production facilities, factories and many other industrial environments.

K4 LED Linear High Bay Light Product Specifications

K4 LED Linear High Bay Light Product  Specifications

K4 LED Linear High Bay Light Product Parameters

Part Number

HS-HB50W-K4

HS-HB100W-K4

HS-HB150W-K4

HS-HB200W-K4

HS-HB250W-K4

Wattage

50W

100W

150W

200W

250W

Lumen Output

7600lm

15200lm

22800lm

30400lm

38000lm

LED Quantity

84pcs

168pcs

252pcs

336pcs

336pcs

Size(MM)

L305*W110*H54

L600*W110*H54

L895*W110*H54

L1190*W110*H54

L1190*W110*H54

LED Chip

Lumileds 3030

Luminous Efficacy

152LM/W

CCT

3000K-6500K

CRI

≥80

Beam Angle

60°/90°/120°

IP Rating

IP54

Working Temperature

-30℃ to +55℃

Input Voltage

AC100-277V/347V/480V, 50/60Hz, >0.92

Warranty

7 years

Lifespan

>50,000hrs

Material

Die-casting Aluminum housing+PC lens

Key Features Of K4 LED Linear High Bay Light

1. High luminous efficacy up to 152lm/w

2. Separate heat sink for led driver and led chip

3. Intelligent lighting: Zigbee wireless control, daylight sensor dimming,microwave sensor dimming, three in one(0-10v,PWM, resistance) dimming available

4. Colorful housing can be customized

Key Features Of K4 LED Linear High Bay Light

K4 LED Linear High Bya Light Intelligent Control

K4 LED Linear High Bya Lighting includes 0-10V Dimming,Timer Control, Zigbee Control , Occupancy sensor,DALI Control,Emergency power supply

K4 LED Linear High Bya Light Intelligent Control

K4 LED Linear High Bya Light Milky Lens And Transparent Lens

K4 LED Linear High Bya Lighting Milky Lens And Transparent Lens.Multiple option.including 60°/90°/120°

K4 LED Linear High Bya Light Milky Lens And Transparent Lens

K4 LED Linear High Bya Light Junction Box for Safe and Convenient Wiring

There is a junction box alongside the fixture for preventing wiring exposed outside. Cables could be wired inside the box for situations when intelligent options are added. It is safer practice and complied with wiring code.

K4 LED Linear High Bya Light Junction Box for Safe and Convenient Wiring

K4 LED Linear High Bya Light Multiple Mounting Options

K4 LED Linear High Bya Light Multiple Mounting Options

K4 LED Linear High Bya Light Applications

Widely use in workshop,factory, warehouse,stadium,exhibition hall,supermarket,court,etc.

K4 LED Linear High Bya Light Applications 1

K4 LED Linear High Bya Light Applications 2
