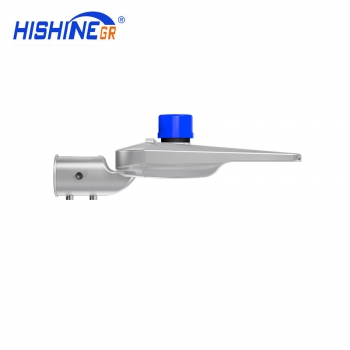

Hi-Slim LED Street Light 45W 75W 100W


Product Parameters:

  • Wattage: 45W 75W 100W
  • Luminous Efficacy: 155LM/W
  • Lumen Output: 6975lm 11625lm 15500lm
  • Warranty: 7 years
  • Certification: UL,DLC,CB,CE,SAA,SASO,IP66
See Price

Hi-Slim LED Street Light 45W 75W 100W

HISHINE launched Hi-Slim series of Led Street light-B. It is equipped with LED indicators and various dimming and remote management options, which can significantly reduce energy consumption. It provides a very competitive alternative for lamps equipped with traditional light sources (such as high-pressure sodium lamps).

By providing higher value to municipalities and facility managers, continue to improve performance standards and reduce total cost of ownership. The new Hi-Slim street lamp has an unmatched lumen output, can be used for road lighting and economic performance, expanding the range of applications, can replace up to 200W HPSV / MH street lamps.

The Hi-Slim series is ideal for a variety of road applications, helping to increase the economic value of development departments, municipalities or own utilities. Made of die-cast aluminum to provide effective heat dissipation. This will ensure that the LEDs and drivers will operate at low temperatures during operation and can last 5 to 10 years!

Hi-Slim Led Street Light Product Specifications

Hi-Slim Led Street Light Product  Specifications

Key Features Of Hi-Slim Led Street Light

1. Ultra slim heat sink design makes the lamp lighter and better in heat dissipation

2. High lumen SMD3030/SMD5050 chip

3. Waterproof IP67,high thermal conductivity housing

4. Beam angle Type II,III,IV  glass lens with transmittance 92%

5.Maximised savings on energy and maintenance costs

6.Contractor-friendly installation and maintenance

7.Minimal total cost of ownership

8.Flexible and intelligent lighting control options

9.Low windage and lightweight

Hi-Slim Led Street Light Product Parameters

(5050 Chip Series)

Part Number

HS-SL45W-B

HS-SL75W-B

HS-SL100W-B

Wattage

45W

75W

100W



Lumen Output

6975lm

11625lm

15500lm



LED Quantity

40pcs

80pcs

80pcs



LED Chip

 Lumileds 5050

Luminous Efficacy

155LM/W

Beam Angle

TypeII,TypeIII

(3030 Chip Series)

Part Number

HS-SL45W-B

HS-SL75W-B

HS-SL100W-B

Wattage

45W

75W

100W



Lumen Output

5850lm

9750lm

13000lm



LED Quantity

77pcs

154pcs

154pcs



Size(MM)

L378*W280*H82

LED Chip

  Lumileds 3030

Luminous Efficacy

130LM/W

CCT

3000K-6500K

CRI

≥80

Beam Angle

TypeII,TypeIII,TypeIV

IP Rating

IP66

Working Temperature

-30℃ to +55℃

Input Voltage

AC100-277V/347V/480V, 50/60Hz, >0.92

Warranty

7 years

Lifespan

>50,000hrs

Material

Die-casting Aluminum housing+PC lens+Tempered glass cover



Hi-Slim Led Street Light Highlights

Hi-Slim Led Street Light Highlights

Hi-Slim LED Street Light Lens And Beam Angle

Hi-Slim LED Street Light Lens  And Beam Angle

Hi-Slim LED Street Light Smart city lighting

Hi-Slim Smart lighting includes 0-10V Dimming,Timer Control, Photocell, Occupancy sensor,DALI Control,Solar Compatible

Hi-Slim LED Street Light Smart city  lighting

Hi-Slim LED Street Light Tool-free LED Driver Replacement

Hi-Slim LED Street Light Tool-free LED  Driver Replacement

Hi-Slim LED Street Light With Buckle

Hi-Slim LED Street Light With Buckle

Hi-Slim LED Street Light Power-off Protection

Hi-Slim LED Street Light Power-off  Protection

Hi-Slim LED Street Light Vent

There are two vents with a balanced atmosphere

Pressure and moisture prevention

Hi-Slim LED Street Light Vent

Hi-Slim LED Street Light Multiple Mounting Options

Hi-Slim LED Street Light Multiple  Mounting Options

Hi-Slim LED Street Light Applications

Widely use in high way, parking lot area, roadway, pathway, square,stadium,residential area,yard,industrial area and etc.

Hi-Slim LED Street Light Applications 1

Hi-Slim LED Street Light Applications 2
