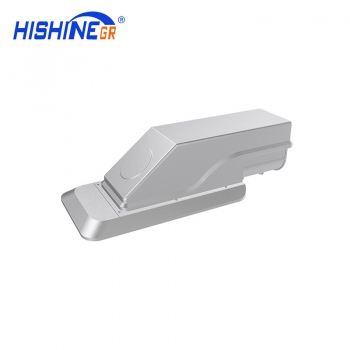

Hi-Small LED Street Light


Product Parameters:

  • Wattage: 30W 50W 70W 100W 150W
  • Luminous Efficacy: 163LM/W
  • Lumen Output: 4900lm-21900lm
  • Warranty: 5 years
See Price

Hi-Small LED Street Light

Hi-Small LED Street Light LEDs producing up to 21900 lumens,The Hi-Small LED Street Light combines the latest in LED technology with a high-performance, high efficacy, long-life luminaire. The outstanding photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. Coupled with  wireless controls, the Hi-Small LED Street Light family provides enhanced end-user experiences and unmatched energy savings.

Hi-Small LED Street Light Energy saving

>163lm/W makes more than 50% energy savings and

>100,000h life span allows more than 70% maintenance savings

Hi-Small LED Street Light Energy saving

Hi-Small LED Street Light  Product Parameters

Part Number

HS-SL30W-C

HS-SL50W-C

HS-SL70W-C

HS-SL100W-C

HS-SL150W-C

Wattage

30W

50W

70W



100W

150W

Lumen Output

4900lm

7600lm

10200lm



15000lm

21900lm

LED Quantity

34pcs

34pcs

34pcs



56pcs

56pcs

Size(MM)

L424*W166*H116

L533*W210*H119

LED Chip

 Lumileds 5050

Luminous Efficacy

163LM/W

155LM/W

146LM/W

150LM/W

146LM/W

CCT

3000K-6500K

CRI

≥80

Beam Angle

TypeII,TypeIII,TypeIV

TypeIII,TypeIV,TypeV

IP Rating

IP65

Working Temperature

-30℃ to +55℃

Input Voltage

AC100-277V/347V/480V, 50/60Hz, >0.92

Warranty

7 years

Lifespan

>50,000hrs

Material

Die-casting Aluminum housing+PC lens





Key Features Of Hi-Small LED Street Light

1. Whole lamp lumens 163LM/W

2. Minimalist & toughness design ideas bring modern visual effect, angular appearance for lamp,with light weight,saving cost for installation & shipping.

3. High lumen SMD5050 chip, stronger penetration rate

4. Waterproof IP67,high thermal conductivity housing

5. Beam angle Type II,III,IV,V   lens with transmittance 92%

Key Features Of Hi-Small LED Street Light

Hi-Small LED Street Light Product Specifications

Hi-Small LED Street Light Product  Specifications

Hi-Small LED Street Light Light Distribution Optional

Hi-Small LED Street Light Light  Distribution Optional

Hi-Small LED Street Light Smart city lighting

Hi-Slim Smart lighting includes 0-10V Dimming,Timer Control, Photocell, Occupancy sensor,DALI Control,Solar Compatible

Hi-Small LED Street Light Smart city lighting

Hi-Small LED Street Light IP Rating IP65

se silicon rubber ring sealing process, IP grade reach IP65,completely prevent dust invasion and heavy rain.

Hi-Small LED Street Light IP Rating IP65

Hi-Small LED Street Light Multiple Mounting Options

Hi-Small LED Street Light Multiple  Mounting Options

Hi-Small LED Street Light Applications

Widely use in high way, parking lot area, roadway, pathway, square,stadium,residential area,yard,industrial area and etc.

Hi-Small LED Street Light Applications

Hi-Small LED Street Light Applications 2
