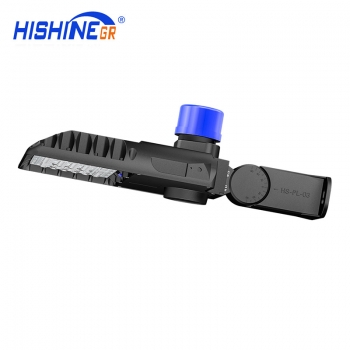

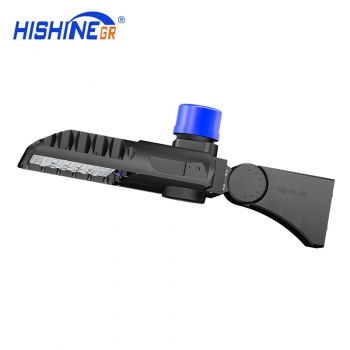

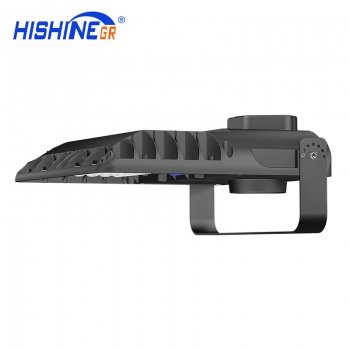

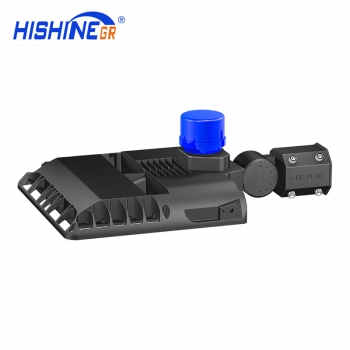

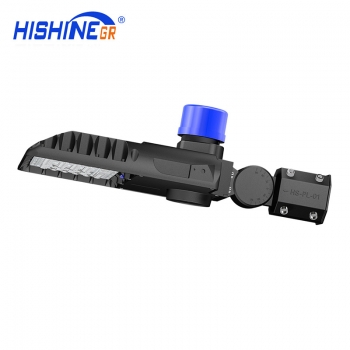

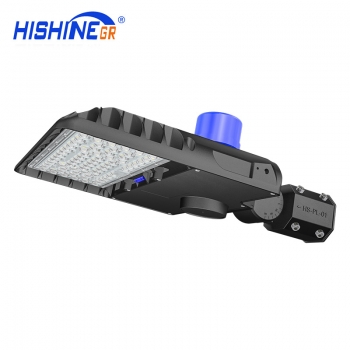

Hi-Sun Led parking lot light 75W 100W 150W


Product Parameters:

  • Wattage: 75W 100W 150W
  • Luminous Efficacy:  180LM/W
  • Lumen Output:  14250lm-28500lm
  • Warranty: 7 years
  • Certification: UL, DLC, CE, CB, ROHS,SOSA,IK10
See Price

Hi-Sun Led parking lot light uses Lumileds 5050 light source, the penetration rate is 30% stronger than 3030. It has the characteristics of high quality, energy saving, high brightness and long service life. In the heat dissipation of the lamp body, the Hishine R & D team adopted separate heat dissipation for the Hi-sun series led parking lot light to achieve independent heat dissipation from the lamp bead and power supply. The heat dissipation effect is good, and the service life is 10,000h. The light emitted by Hi-sun led parking lot light is soft and evenly distributed, with a brighter effect and better color rendering. Equivalent to the lighting of 250-watt metal halide lamps, you will enjoy instant start, flicker-free cold start and industry-leading 190Lm / W.

Hi-Sun-Led-parking-lot-light75w-100w-150w_01

Hi-Sun Led parking lot light Product specifications

Hi-Sun Led parking lot light Product specifications

Key Features Of Hi-Sun Led parking lot light

• 190LM/W,  40% energy saving .

• Unique design is better for anti-bird and leaves, independent cooling of light source and power supply which will reduce light decay.

• High Lumen SMD5050 Led chip, the penetration rate is 30% stronger than normal chips.

• The fixture adopts independent split heat dissipation design, can effectively reduce the light decay of the leds.

• Light distribution: Type II, Type III, Type V.

• Varieties of installation fittings for different applications

Key Features Of Hi-Sun Led parking lot light

Hi-Sun Led parking lot light Parameters

(3030 Chip Series)

Part Number

HS-PL75W-C

HS-PL100W-C

HS-PL150W-C

Wattage

75W

100W

150W



Luminous Efficacy

135LM/W

130LM/W

130LM/W

Lumen Output

10125lm

13000lm

19500lm

LED Quantity

136pcs

136pcs

136pcs

(5050 Chip Series)

Part Number

HS-PL75W-C

HS-PL100W-C

HS-PL150W-C

Wattage

75W

100W

150W



Luminous Efficacy

190LM/W

185LM/W

175LM/W

Lumen Output

14250lm

18500lm

26250lm



LED Quantity

68pcs

68pcs

68pcs

Size(MM)

L343*W340*H100

L343*W340*H100

L343*W340*H100

CCT

3000K-6500K

CRI

≥80

Beam Angle

TypeII,TypeIII,TypeV,

IP Rating

IP66

Working Temperature

-30℃ to +55℃

Input Voltage

AC100-277V/347V/480V, 50/60Hz, >0.92

Warranty

7 years

Lifespan

>50,000hrs

Material

Die-casting Aluminum housing+PC lens

Hi-Sun Led parking lot light Components

Hi-Sun Led parking lot light Components

Hi-Sun Led parking lot light smart

Hi-Sun Led parking lot light smart

Hi-Sun Led parking lot light Light Distribution

Hi-Sun Led parking lot light Light Distribution

Hi-Sun Led parking lot light Multiple Mounting

Hi-Sun Led parking lot light Multiple Mounting

Hi-Sun Led parking lot light Applications

Used in large parking lots and tennis courts, roads, Badminton, football, basketball, tower lights, etc. It can also be used in special lighting environments such as airports, commercial buildings, construction projects, farms, amusement parks, parking lots, ports, and industrial buildings.

Hi-Sun Led parking lot light Applications1

Hi-Sun Led parking lot light Applications2

Hi-Sun Led parking lot light Applications3
